Teknik Özellikler
Wi-Fi standard 2.4G: 802.11b/g/n/ax 5G: 802.11a/n/ac/ac Wave 2/ax
Installation Type Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod)
Optimal Signal Distance (m) 20
Device Rate 1.775 Gbps

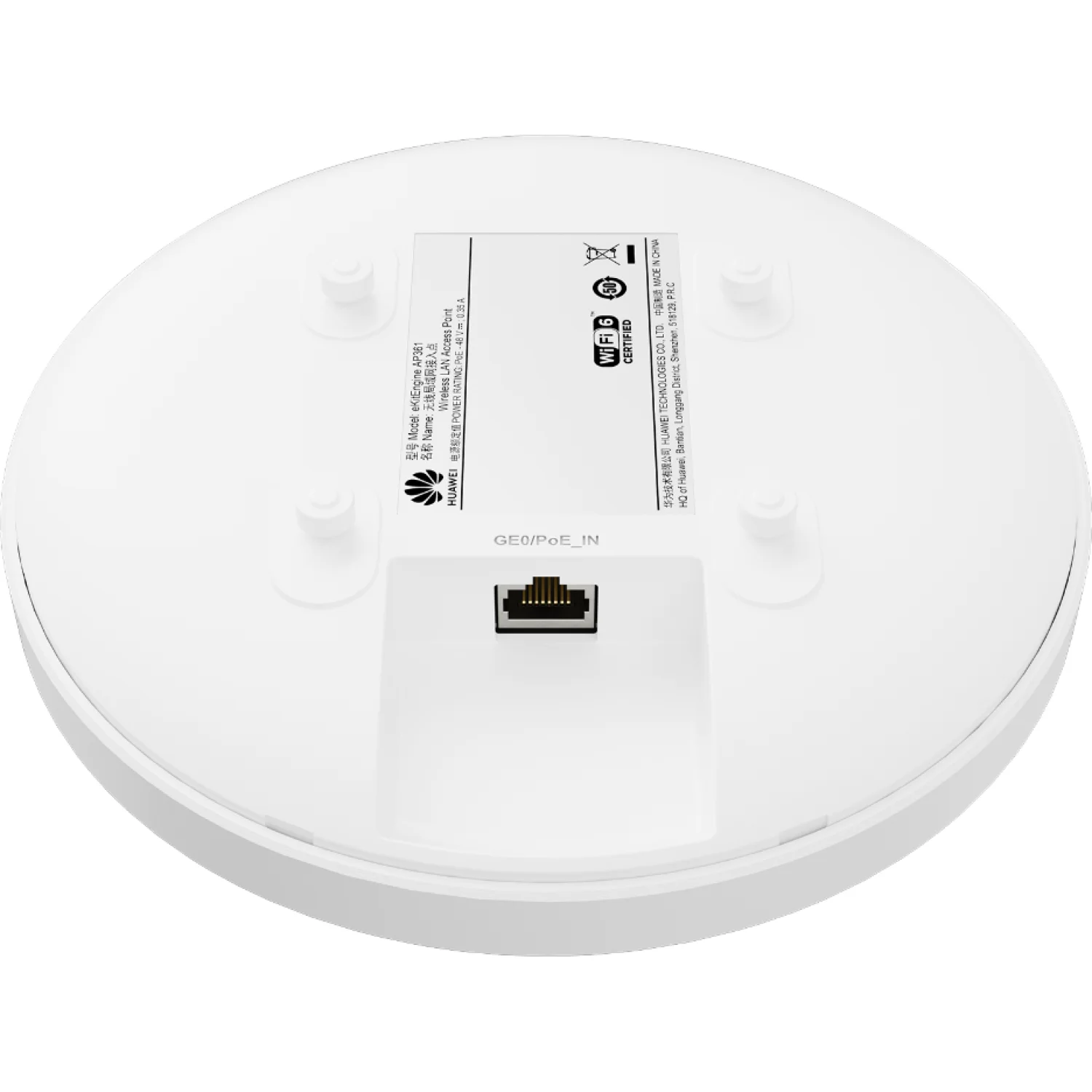

Maximum number of physical ports on the entire device GE (RJ45) x 1, 10M/100M/1000M auto-sensing
Radio number 2
Maximum channel bandwidth [MHz] Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 80 MHz
Maximum transmit power 2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz: 20 dBm/chain 23 dBm (combined power) Note: In V200R024C10 and later versions, the combined power is increased to 23 dBm by default. In versions earlier than V200R024C10, the combined power is only 20 dBm. To increase the transmit power for the AP running an earlier version, install the corresponding patch by referring to the announcement on the official website.
MIMO spatial streams Radio 0 (2.4 GHz): 2×2 Radio 1 (5 GHz): 2×2
Maximum power consumption [W] 9.4
Input voltage range [V] PoE: 802.3af
Dimensions without packaging (H x W x D) [mm(in.)] Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.)
Weight without packaging [kg(lb)] 0.45 kg (0.99 lb)
Weight with packaging [kg(lb)] 0.75 kg (1.65 lb)
Long-term operating temperature [°C(°F)] 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing
Radio interface Built-in smart antennas
Antenna gain 2.4G: 4 dBi/chain (peak) 2 dBi (combined gain) 5G: 5 dBi/chain (peak value) 3 dBi (combined gain)
Operating frequency band 2.4GHz,5GHz
